DIMENSIONS

LENGTH:

20' - 26'

WIDTH:

82" - 102"

DECK HEIGHT:

25"

WEIGHT RATINGS

AXLE OPTIONS:

10k SS

GVWR:

22.4k

TILT SYSTEM

TILT METHOD:

Gravity Tilt System

TILT DECK:

Split Deck (16' Tilt Section)

LIFT CYLINDER:

1 - 3"x16" Cylinder

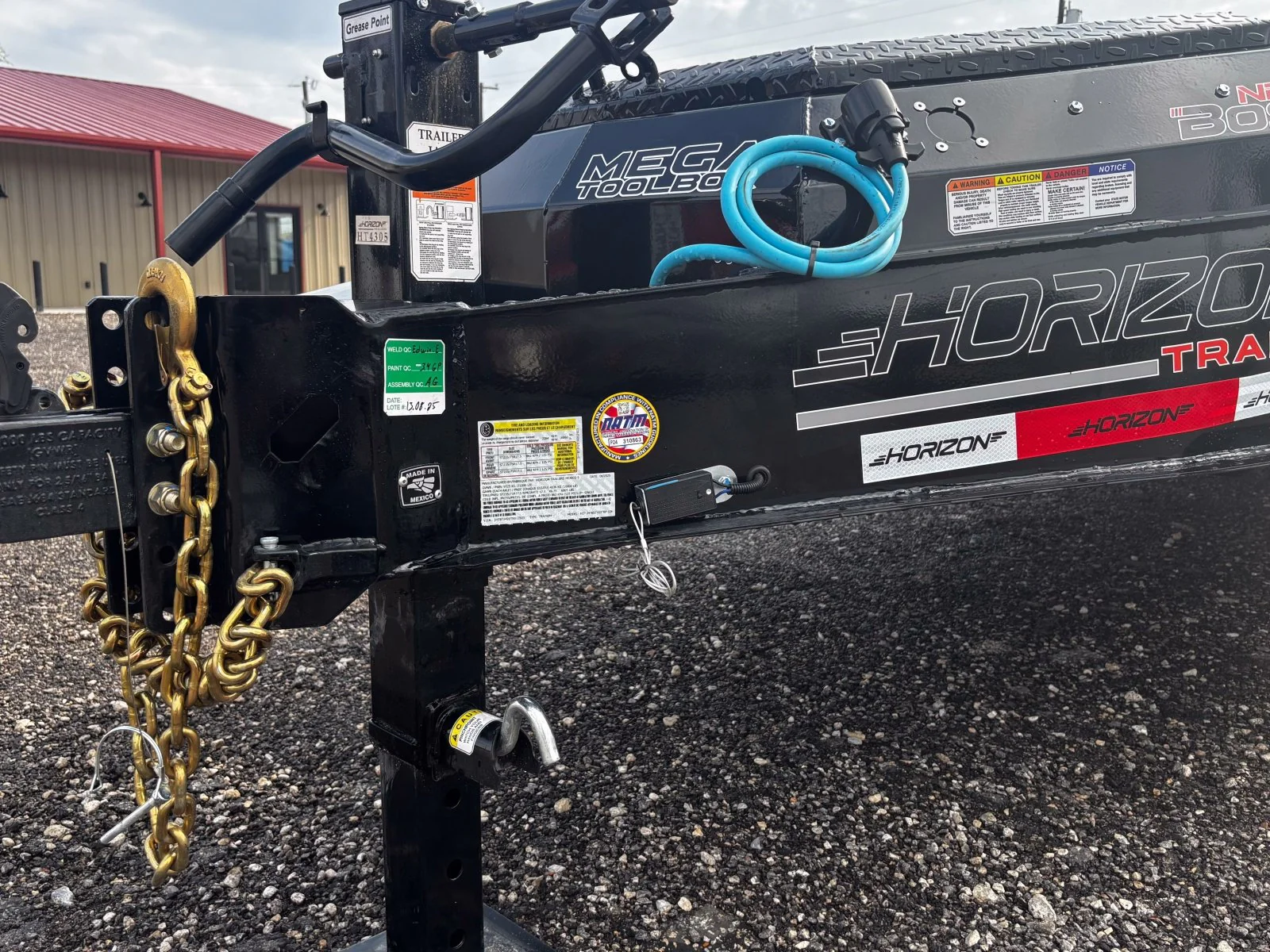

TONGUE

PULL TYPE:

Bumper Pull

TYPE:

10" (17lbs/ft) I-Beam

LENGTH:

60"

STANDARD COUPLER BP:

Adjustable 2 5/16" (21,000 lbs) Coupler

FRONT JACK BP:

Single 12k Drop-Leg Jack

TOOLBOX BP:

Mega Lockable Toolbox

FRAME & CONSTRUCTION

FRAME:

10" (17lbs/ft) I-Beam

CROSSMEMBERS:

3" Channel, 16" Spacing

DECK:

Wood

FENDERS:

12 Ga. Removable Fenders
1/4" Diamond Plate DOF

WARRANTY

TRAILER WARRANTY:

3 Year Frame / 1 Year Parts Warranty

AXLE WARRANTY:

5 Year Dexter Axle Warranty

RUNNING GEAR

TIRES:

ST235/75R17.5

TIRE PLY:

18 Ply

TIRE RATING:

6005 lbs

RIMS:

17.5" Black Mod Wheels

BRAKES:

Electric Brake

AXLE TYPE:

2 - 10k SS Oil Bath Dexter Axles

AXLE COUNT:

2

BOLT PATTERN:

8 on 6.5"

SUSPENSION TYPE:

Torsion

ELECTRICAL & LIGHTING

WIRING HARNESS:

All-Weather Wiring Harness (7-Way RV)

FRAME WIRING:

Double Insulated Wiring Harness

REAR LIGHTS:

DOT Approved LED Lighting

FINISH

PAINT TYPE:

Powdercoat

PREP:

Steel Grit Blasted

COLORS:

Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
