DIMENSIONS

LENGTH:

20' - 32'

WIDTH:

102"

DECK HEIGHT:

34"

WEIGHT RATINGS

GAWR:

7k, 8k, 10k SS

GVWR:

15.2k - 31k

FINISH

PAINT TYPE:

Powdercoat

PREP:

Steel Grit Blasted

COLORS:

Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue

SAFETY

BREAKAWAY SYSTEM:

2382 Brightway Group Electric Breakaway Kit

REFLECTIVE TAPE:

3M DOT Compliant Reflective Tape

SAFETY CHAINS:

3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

TONGUE

PULL TYPE:

Bumper Pull

LENGTH:

83" Long

STANDARD COUPLER BP:

Adjustable 2-5/16" Coupler (17,000 lbs)

FRONT JACK BP:

2 - Side Wind Spring Loaded 12k Drop-Leg Jacks

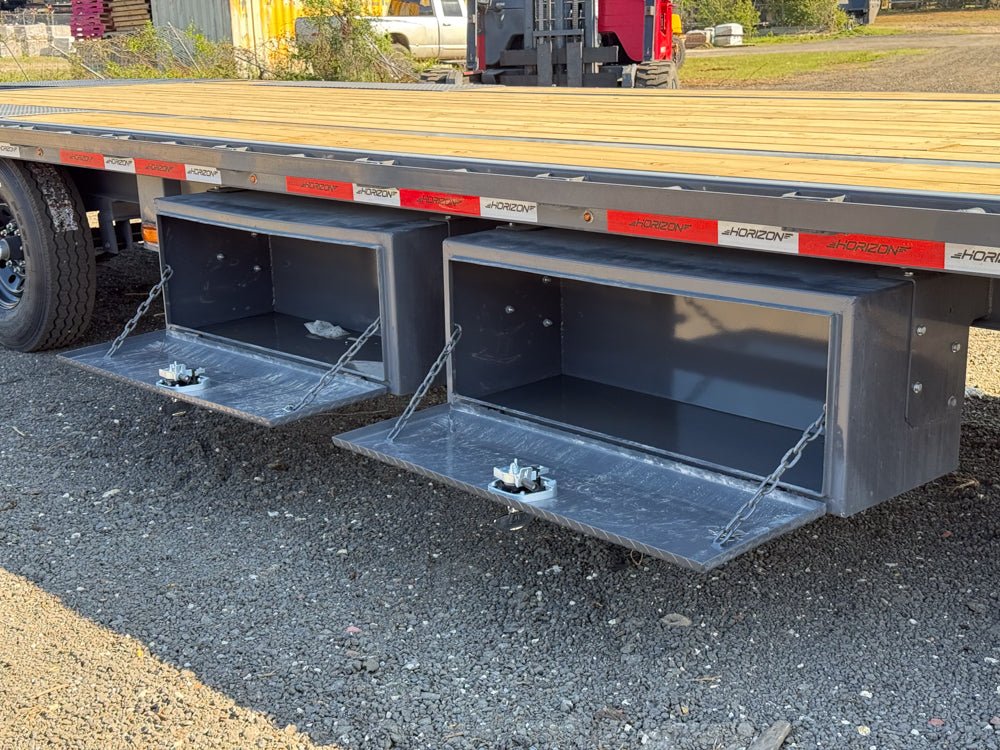

TOOLBOX BP:

Diamond Mesh Wire Floor Storage

DECK & LOADING

RAMPS:

8' Slide In Ramps

RAMP TYPE:

5' Dovetail w/ 2 Mega Ramps

DECK TYPE:

Wood

ELECTRICAL & LIGHTING

WIRING HARNESS:

All-Weather Wiring Harness (7-Way RV)

FRAME WIRING:

Double Insulated Wiring Harness

REAR LIGHTS:

DOT Approved LED Lighting

FRAME & CONSTRUCTION

MAIN FRAME:

12" I-Beam (14-19lbs/ft)

CROSSMEMBERS:

3" Channel, 16" Spacing

TORQUE TUBE:

4 1/2" Tube (30'+)

RUNNING GEAR

TIRES:

ST235/80R16 (7k), ST235/85R16 (8k), ST235/75R17.5 (10k)

PLY:

10 Ply (7k), 14 Ply (8k), 18 Ply (10k SS)

RIMS:

16" Black Mod Wheels (17.5" Black Mod Wheels on 10k)

BRAKES:

Electric Brake

AXLE TYPE:

2 - 7k EZ Lube Axles
2 - 8k EZ Lube Axles
2 - 10k Oil Bath Super Single Axles

AXLE COUNT:

2

BOLT PATTERN:

8 on 6.5"

SUSPENSION TYPE:

Spring

WARRANTY

AXLE WARRANTY:

5 Year Dexter Axle Warranty

TRAILER WARRANTY:

3 Year Frame / 1 Year Parts Warranty
